24Keys IR Remote LED strip controller for SMD 3528 5050 RGB LED Strip Lights
Controller
| Model | Input voltage | channels | Output powerWatts | Modes of changing |
| JN-CT24K1 | 12V DC | 3 | 72W (12VDC) | 144W (24VDC) | 20 |
Remote
| Working voltage | Control way | control distance | Battery types | key numbers |
| 3V DC | IR | 6-8m | Li battery,CR2052 | 24keys |
Panel and interface specifications:
Control method:

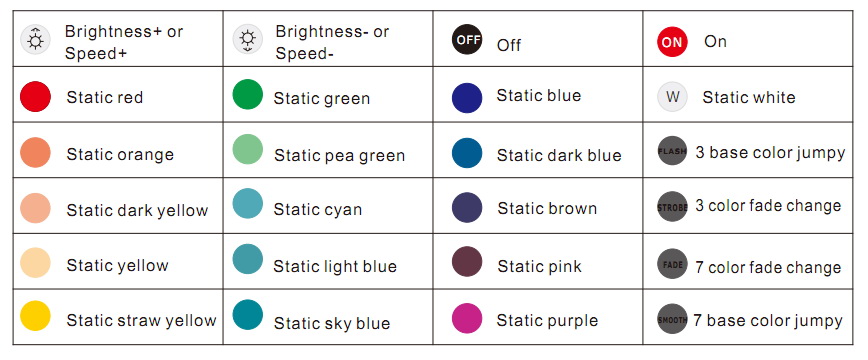

Using IR remoter to control the LED strip controller,which has 24 buttons,the function of each button as listed below :
Note:
The first two keys which concerns the brightness +/- or speed +/-,they're the multiplex key in the remote.when in static mode,they are brightness adjust keys,while in dynamical mode,they are used to adjust speed.
To avoid the battery power run out by extrusion during production and transportation,insulation film will be inserted between the battery and the circuit. Be sure to take out the insulation film before using the remote.
The wiring and the typical product apply diagram
Production dimensions:
Packing details :
| Controller size | Remote size | Packaging size | Weight/pcs | Ctn size | G.W./ctn | Pcs/CTN |
| L61.5xW35xH22mm | L85xW52xH7mm | L90xW57xH40mm | 76g | 39x30x22cm | 8.2 | 100pcs |
Install caution :
1.Please install the products by professional electrician.
2.It's non waterproof,please put into waterproof tank if in outdoor use.
3.ALways be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
4.Please don't instatll the LED strip controller in lightening,intense magnetic and high voltage fields.
5.Check if the voltage and power supply suit the controller and the LED strip lights.
6.Plese make sure the wires can sufficiently load the LED strip lights.
