14.4W 60LEDs per meter LED RGB Strip Lights12Volt 24volt SMD5050 5m 72W
Features:
1. Classical flexible RGB strip.
2. Double layer pure copper PCB.
3. 3M adhesive tape ,easy to install.
4. High brightness SMD5050.
5. 120 degree.
6. Strandard 5 meters per roll,cuttable every 6PCS LED at the mark.
7. Flexible and reliable with CE&RoHS
8. Warranty 2 years.
Descriptions:
| Item Name | 5050 LED RGB strip light |
| Voltage | DC12V/24V |
| Color | RGB |
| Light source | SMD 5050 |
| led QTY | 30leds/m,60leds/m |
| Power | 7.2W/M,14.4W/M |
| Size | 5000*10*2mm |
| Package | 5 meter one roll |
| Beam Angle | 120° |
| IP level | IP20,IP65,IP65 |
| Warranty | 2 years |

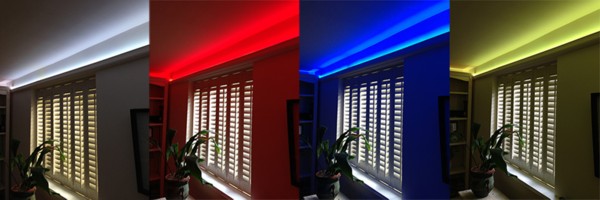

Application area:
· Cove lighting
· Architectural lights for canopy, archway
· Backlight or edge lighting for signage
· DIY lights for home use
· Path and contour marking
· Decorative lights for holiday, event, show, exhibition, hotel
Using Notice:
· The LED RGB strip light itself and all its components may not be mechanically stressed.
· Assembly must not damage or destroy conducting paths on the circuit board.
· Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations.
· Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
· Parallel connection is highly recommended as safe electrical operation mode.
· Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
· Please ensure that the power supply is of adapters power to operate the total load.
· When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
· Pay attention to standard ESD precautions when installing the strip.
· Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
· Caution needs to be taken while doing the connection after cutting the strip. Only authorized professionals can do the work to enable it waterproof in wet locations.
Typical Connectting Diagram
